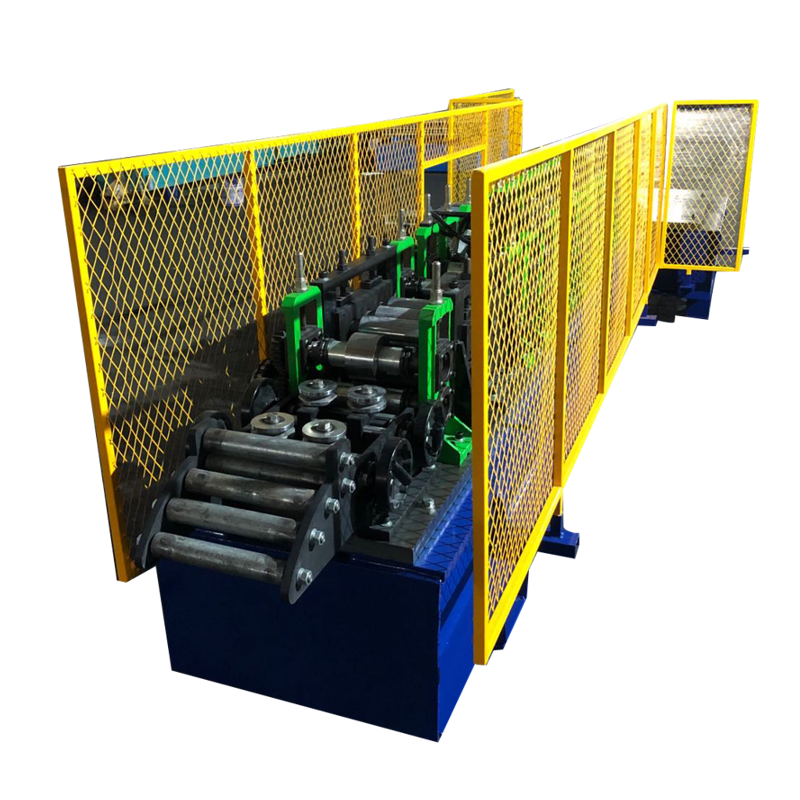

Auto Spare Parts Roll Forming Product Line
| Raw material | |
| material spec | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.8-1.5 mm |
| Side rail height | 50-60mm |
| length | Max3000mm |
| Width | 50-500mm |
| Production capacity | 8-15m/min |
| Machine details | |
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm or as your requirement |
| main frame | |
| 350 H steel | |
| forming steps | 22rows |
| hydraulic station power | 15 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| hydraulic oil | 40# hydraulic oil |
| After sale-services | |
| Delivery time | 30 workdays after receiving the deposit |
| Payments | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |
